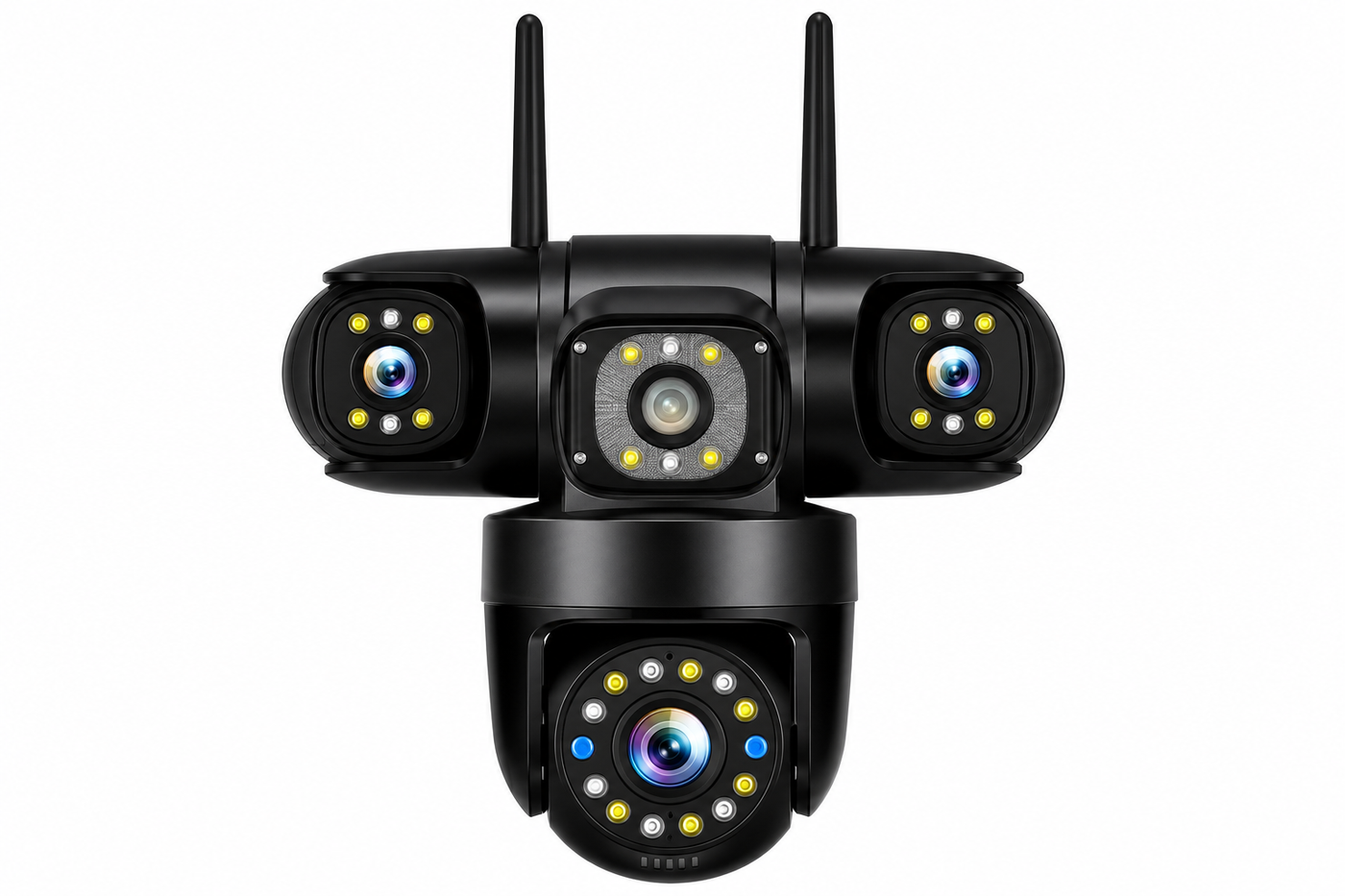

Q83D12 Outdoor Triple-Lens PTZ Security Camera | SightSys
Q83D12 is a 6MP outdoor triple-lens PTZ security camera for wide-area and long-range surveillance, OEM/ODM distributors and private-label partners under the SightSys platform. 6MP resolution (1920 × 1080 × 3) with three lenses, focal length 4mm + 4mm + 4mm Center lens: App-controlled 355° pan / 90° tilt; side lenses support manual adjustment Smart dual-light night vision — IR and full color, up to 15 m AI human detection, tracking, and smart alarm push notifications Two-way audio for real-time communication Device sharing for multiple online viewers Local TF card storage (up to 128 GB) and cloud storage support Network: 2.4 GHz Wi-Fi / RJ45 LAN / Bluetooth IP65 weatherproof rated Power input: DC 12V / 1.5A; Max. working power: <15W Working temperature: -20°C ~ 60°C; Humidity: 10% ~ 90% RH (non-condensing) App: SightSys Packaging: Color box 20.5×15×22.5 cm; Carton 62×47×63.5 cm; 24 pcs/carton; G.W. 23.3 kg. Accessories: camera ×1, power adapter ×1, waterproof lid ×1, screw package ×1, user manual ×1.
Evidence-aware product record
Model notes
| Product family | Security Camera |
|---|---|
| Model | SightSys · Q83D12 Outdoor Triple-Lens PTZ Security Camera | SightSys |
| Commercial path | OEM / ODM / RFQ |
| Evidence state | Project confirmation required |
| Published price | Confirmed per quotation |
Production context
Your model is supported by the operation behind it.
Use the product record together with a direct view of the showroom and quality workflow before requesting a quotation.
Quality process
Assembly and inspection
Production and inspection remain part of the model-level conversation.
