Indoor Security Camera / RFQ catalog

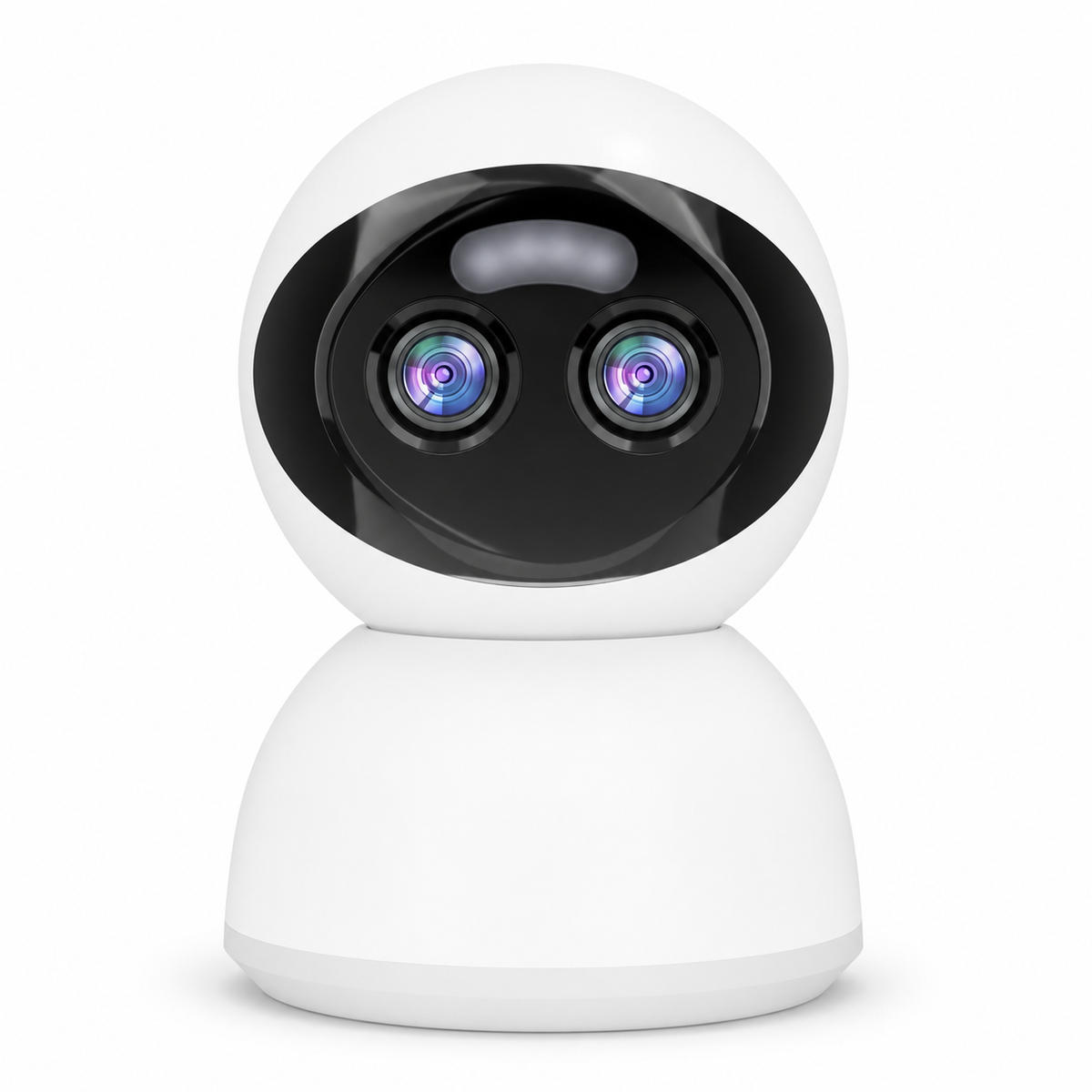

SHM-MY621EM Indoor Security Camera
SHM-MY621EM is an indoor dual-lens security camera with two 4mm lenses, interpolated 3MP per lens and 10× digital zoom. The main lens supports app-controlled 355° pan and 90° tilt, while the secondary lens is manually adjustable. Quote the full model and these resolution and zoom qualifications when comparing samples or specifying a wholesale order.
Product details
Key features
- Two 4mm lenses, specified as interpolated 3MP per lens, with 10× digital zoom.
- App-controlled movement of the main lens and manual adjustment of the secondary lens.
- Human detection and tracking support, smart alarm push notifications and two-way audio.
- 2.4GHz WiFi and BLE connectivity, plus device sharing for multiple online viewers.
- Smart dual-light night vision with infrared and full-color modes, specified up to 15 m.
- TF card storage up to 128GB and cloud storage support; DC 5V/2A device input.
Keep the resolution and zoom qualifications
- The 3MP figure is interpolated per lens, not a supplied native sensor-resolution specification. Retain the interpolation qualification in your purchasing specification.
- The confirmed 10× zoom is digital. Do not describe it as optical zoom or as a verified automatic zoom-tracking mode.
- The two lenses are both 4mm. The main-lens mechanical movement and secondary-lens manual adjustment are different functions; do not assign the main-lens movement range to both lenses.
- The catalogue lists SightSys / Carecam Pro. Confirm the app for the ordered configuration, power accessories, TF card inclusion and cloud-service terms during quotation.
Technical specifications
| APP | SightSys/Carecam Pro |
|---|---|
| Network Support | 2.4GHz WiFi / BLE |
| Resolution | 3MP per lens (interpolated) |
| Lens Focal Length | 4mm × 2 (dual lenses) |
| PTZ Angle | Main lens supports App-controlled 355° pan / 90° tilt; secondary lens supports manual adjustment |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| Power Input | DC 5V/2A |
| Max. Working Power | < 10W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
| Luminous Flux | 550-600 lm |
| Zoom | 10× digital zoom |
Packaging and carton data
| Color box | 9.2 × 9.2 × 15.6 cm |
|---|---|
| Master carton | 48 × 48 × 33.2 cm |
| Quantity per carton | 50 pcs |
| Carton gross weight | 20 kg |
| Accessories | Camera, power adapter if applicable, screw kit, user manual |
Request a model-specific sample or quotation
Include SHM-MY621EM, quantity, destination market, installation power and recording requirements in your enquiry. If image detail or zoom behavior is important to the project, include the sample checks you need while retaining the interpolated-resolution and digital-zoom specifications. Describe branding or packaging needs for an OEM/ODM discussion; the applicable scope can be confirmed for this model.
