Outdoor Security Camera / RFQ catalog

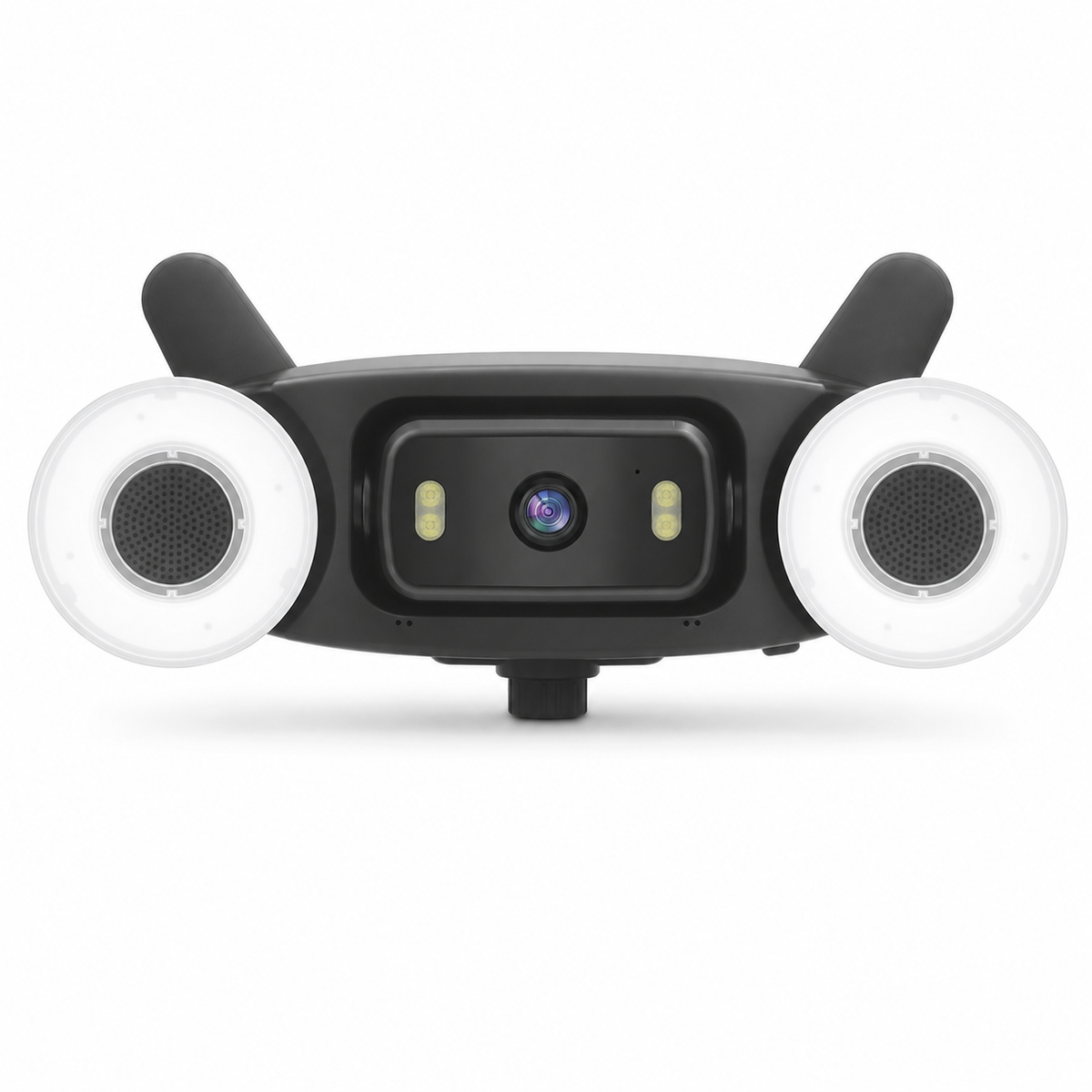

SHM-MT910EM Outdoor Security Camera
SHM-MT910EM combines 3MP imaging with 1000 lm lighting and app-controlled pan and tilt for outdoor monitoring. It connects through 2.4GHz Wi-Fi and uses a model-matched 12V power supply and cable. Review the specifications below for your sample, distribution or OEM project.
Product details
Key features
- 3MP camera with a 4mm lens and 1000 lm lighting output
- App-controlled 355° pan and 90° tilt
- Infrared and full-color dual-light night vision
- Human detection, tracking, alarm push notifications and two-way audio
- TF card support up to 128GB and cloud recording options
- 2.4GHz Wi-Fi / BLE; no RJ45 port
Specifications
| APP | SightSys/Carecam Pro |
|---|---|
| Network Support | 2.4GHz WiFi / BLE; no RJ45 port |
| Resolution | 3MP |
| Lens Focal Length | 4mm |
| PTZ Angle | Supports App-controlled 355° pan / 90° tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| IP Rating | IP65 |
| Power Input | DC 12V / 1.5A (device input) |
| Max. Working Power | < 15W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
| Luminous Flux | 1000 lm |
| Power Connector | USB Type-C |
| Adapter Output | DC 12V / 2A |
Power and order configuration
Power requirements: use a model-matched 12V power supply and cable. A USB Type-C connector alone does not establish compatibility with a USB charger.
Confirm the matched power supply, cable, plug type and adapter inclusion in your quotation. Do not select a charger from its connector shape alone. The device input rating and adapter output rating are different specifications.
SightSys and Carecam Pro are listed App configurations. Confirm the supplied App and firmware version for the order; these names do not promise simultaneous use of both Apps. Confirm TF-card inclusion and any cloud service terms separately.
Before ordering
Can it use an Ethernet cable?
No. This model has no RJ45 port. Plan for 2.4GHz Wi-Fi coverage and the specified power supply at the installation point.
What information is needed for a quotation?
Send the full model number, destination market, sample and order quantities, installation conditions, preferred recording option and any branding or packaging requests. Confirm mounting and weather exposure against the IP65 rating and stated temperature limits.
Packaging and included items
Color box: 28.5 × 10.5 × 10.7 cm. Carton: 59 × 54.5 × 34.1 cm. Quantity per carton: 30 pcs. Carton gross weight: 25.6 kg.
Listed accessories: camera, power adapter if applicable, screw kit, and user manual.
Production context
Your model is supported by the operation behind it.
Use the product record together with a direct view of the showroom and quality workflow before requesting a quotation.
Quality process
Assembly and inspection
Production and inspection remain part of the model-level conversation.
