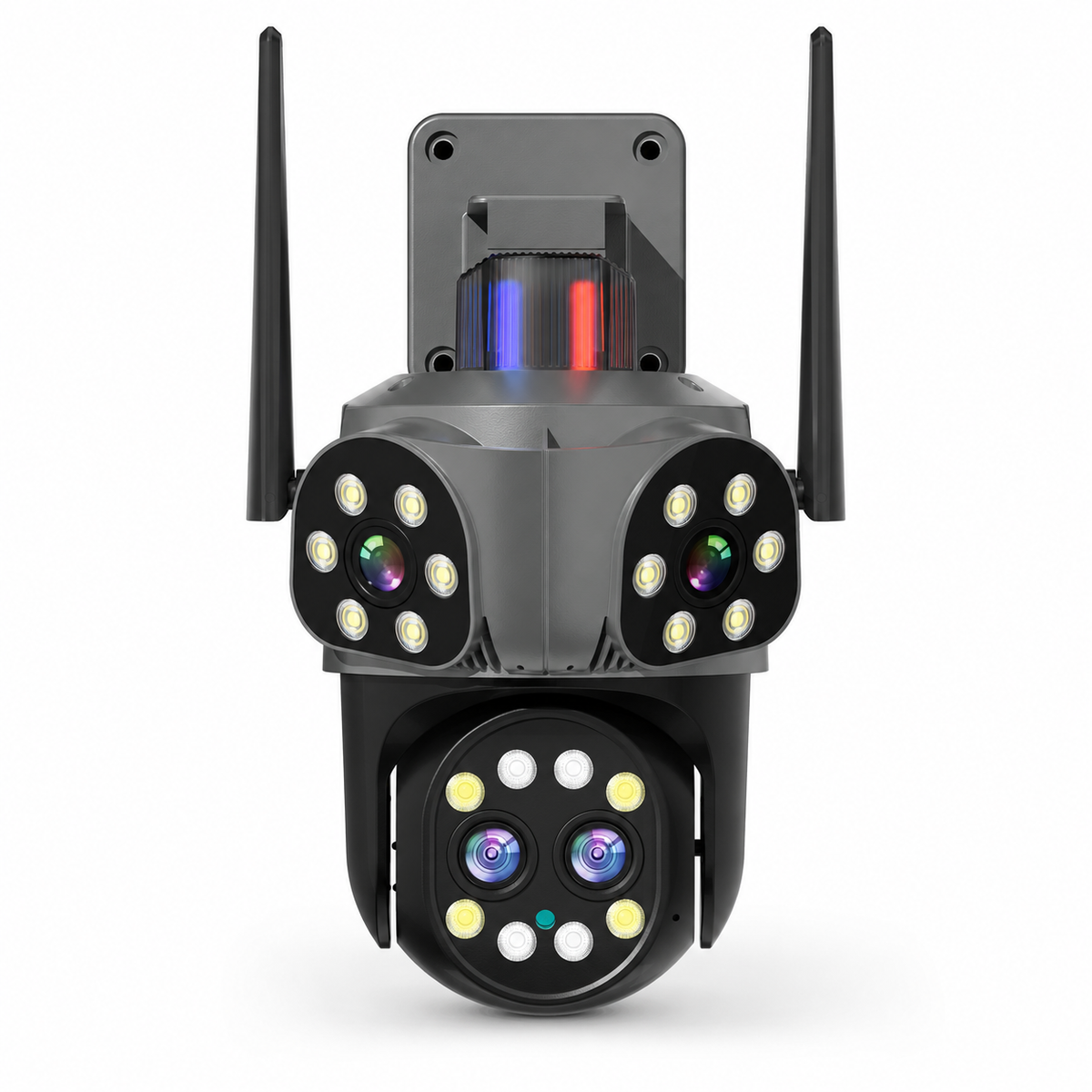

SHM-MQ840A Outdoor Security Camera
SHM-MQ840A is an outdoor security camera with four 4mm lenses, 2.4GHz Wi-Fi and RJ45 LAN connectivity. The confirmed image specification is 2MP (1920 × 1080) per image channel, not a combined resolution. Discuss the viewing and recording configuration for your distributor or OEM project.
Product details
Key features
- Four lenses with a 4mm focal length each
- App-controlled center-lens positioning and manually adjustable side lenses
- Infrared and full-color dual-light night vision
- Human detection, tracking, alarm notifications and two-way audio
- TF-card support up to 128GB and cloud recording options
- IP65 rating and DC 12V / 1.5A device input
Specifications
| APP | SightSys/Carecam Pro |
|---|---|
| Network Support | 2.4GHz WiFi / RJ45 LAN / BLE |
| Resolution | 2MP (1920 × 1080) per image channel; not a combined output rating. Confirm simultaneous output channels and combined output resolution for the selected configuration. |
| Lens Focal Length | 4mm × 4 (four lenses) |
| PTZ Angle | Center lens supports App-controlled 355° pan / 90° tilt; side lenses support manual adjustment |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| IP Rating | IP65 |
| Power Input | DC 12V/1.5A |
| Max. Working Power | < 15W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
Viewing and recording configuration
Lens count and simultaneous output channels are different specifications. Four lenses do not by themselves establish four simultaneous viewing or recording channels. Ask SightSys to confirm the live-view layout and recording-channel arrangement for the quoted configuration. No combined 8MP or 4K output is specified here.
Installation and quotation checklist
Check the available 2.4GHz Wi-Fi or RJ45 LAN connection, a model-matched DC 12V / 1.5A power supply, mounting position and the stated environmental limits. An RJ45 connection does not establish PoE support.
Include the complete model, target market, quantities, required viewing directions and recording functions, and any branding or packaging requests. Confirm the supplied SightSys or Carecam Pro App configuration, adapter and TF-card inclusion, and applicable cloud-service terms in the quotation.
Packaging and included items
Color box: 24.5 × 15.3 × 14.5 cm. Carton: 63.2 × 51 × 75.5 cm. Quantity per carton: 40 pcs. Carton gross weight: 33 kg.
Listed accessories: camera, power adapter if applicable, screw kit, and user manual.
