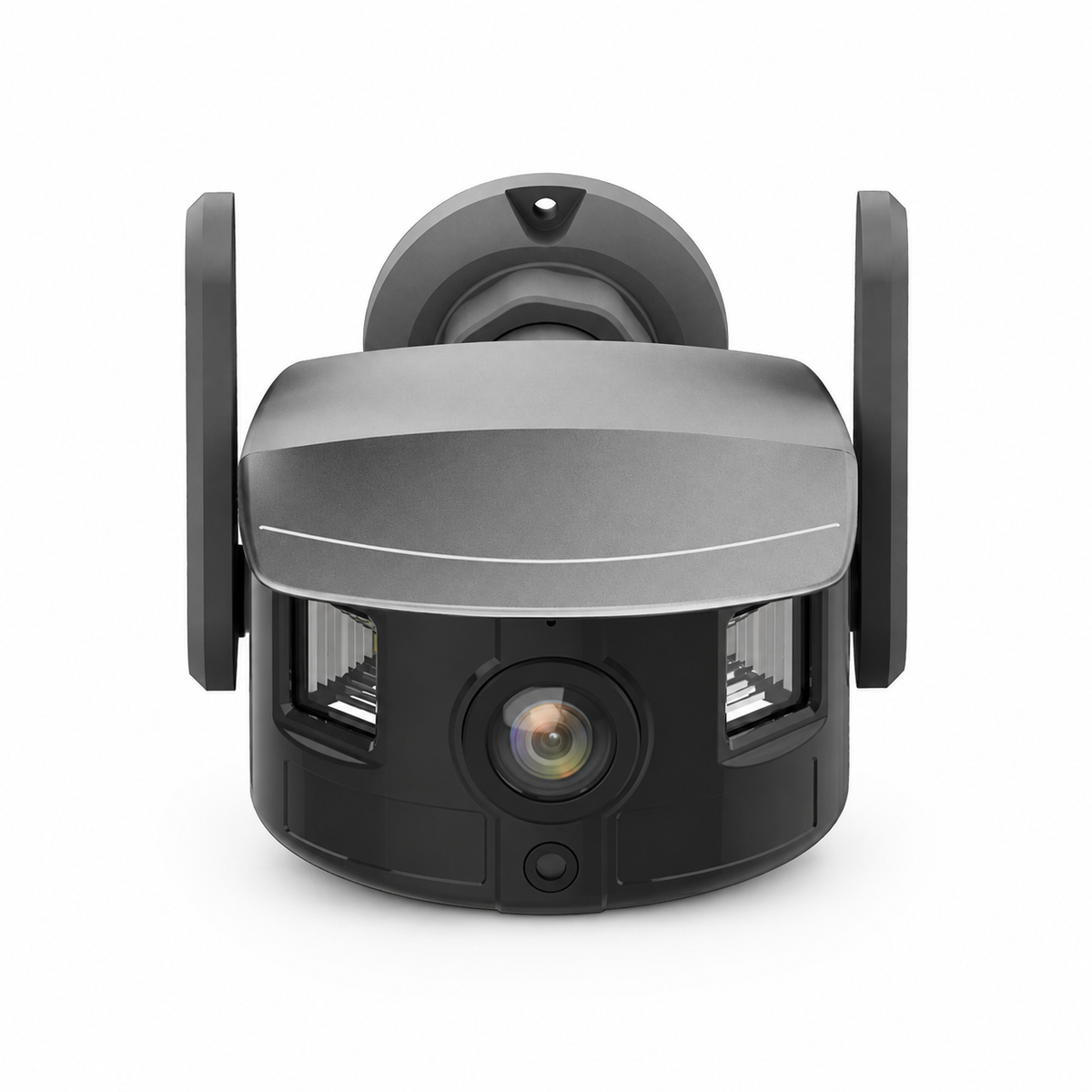

SHM-MI311M Outdoor Security Camera
SHM-MI311M is a 3MP outdoor security camera with a 2.3mm fisheye lens, a specified 135° field of view and SightSys app control. Its mechanical movement is 165° horizontal pan and 110° vertical tilt. These movement angles are separate from the lens field of view and should be recorded separately when comparing models or preparing a sample evaluation.
Product details
Key features
- 3MP imaging with a 2.3mm fisheye lens and a specified 135° field of view.
- Mechanical pan and tilt with human detection and tracking support.
- 2.4GHz WiFi, RJ45 LAN and BLE connectivity, with SightSys app control.
- Smart dual-light night vision with infrared and full-color modes, specified up to 15 m.
- IP65-rated housing, two-way audio, smart alarm push notifications and device sharing.
- TF card storage up to 128GB and cloud storage support.
Lens and movement specifications
- The lens is 2.3mm fisheye. The specified field of view is 135°; its horizontal, vertical or diagonal measurement axis is not stated. Confirm the required measurement axis for an installation-layout comparison.
- The 165° horizontal and 110° vertical figures describe mechanical movement, not the field of view. Do not treat the camera as a 360° pan model.
- The device input is DC 12V/1.5A. RJ45 LAN describes the network connection; PoE support is not specified for this model.
- Use SightSys for the stated sales configuration. Confirm the applicable app release, accessories, TF card inclusion and cloud-service terms in your project quotation.
Technical specifications
| APP | SightSys |
|---|---|
| Network Support | 2.4GHz WiFi / RJ45 LAN / BLE |
| Resolution | 3MP |
| Lens Focal Length | 2.3mm fisheye |
| PTZ Angle | 165° horizontal pan / 110° vertical tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| IP Rating | IP65 |
| Power Input | DC 12V/1.5A |
| Max. Working Power | < 15W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
| Field of View | 135° |
Discuss your sample or OEM/ODM project
Include SHM-MI311M, quantity, destination market, planned WiFi or wired network connection and recording requirements in your enquiry. If your selection depends on field of view, request the measurement axis and a sample assessment for your installation layout. Describe any branding or packaging requirements for a model-specific OEM/ODM discussion.
Packaging and included items
Color box: 22.5 × 16.5 × 9 cm. Carton: 51 × 46.5 × 46.5 cm. Quantity per carton: 30 pcs. Carton gross weight: 17.5 kg.
Listed accessories: camera, power adapter if applicable, screw kit, and user manual.
