Indoor Bulb Security Camera / RFQ catalog

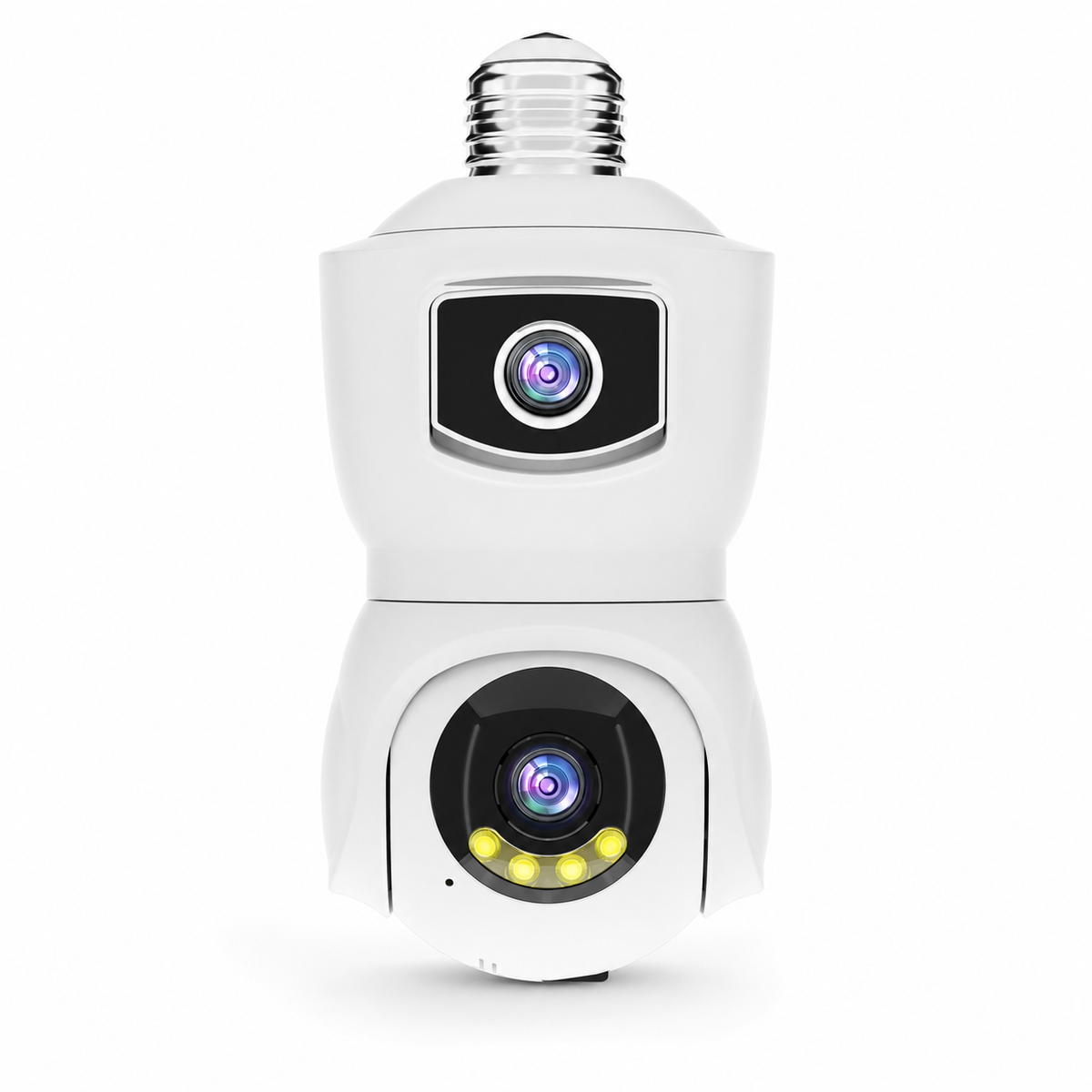

SHM-MD22E9EL Indoor Bulb Security Camera
SHM-MD22E9EL is an indoor E27 bulb security camera with two 4mm lenses, 2.4GHz WiFi connectivity and SightSys app control. Its 4MP configuration is specified as 1920 × 1080 × 2. Use the full model when requesting a sample or discussing a wholesale or OEM/ODM project.
Product details
Key features
- Dual 4mm lenses, with app-controlled 355° pan and 90° tilt plus a manually adjustable lens.
- Human detection and tracking, smart alarm push notifications, and two-way audio.
- Smart dual-light night vision with infrared and full-color modes, specified up to 15 m.
- TF card storage up to 128GB and cloud storage support; device sharing for multiple online viewers.
- E27 lamp-holder power and specified light output of 650–700 lm.
Configuration and installation considerations
- This is an indoor model with 2.4GHz WiFi and BLE. It has no RJ45 port; do not specify it for a wired Ethernet connection.
- The app for this sales version is SightSys. Confirm the required mobile app release when preparing a sample; an app release number is not a camera firmware or hardware revision.
- E27 identifies the lamp-holder connection. Confirm the required input-voltage range and destination-market electrical requirements with SightSys before installation.
- Confirm TF card inclusion, cloud-service availability and any service terms for the quotation. Storage support does not establish that a card or cloud subscription is included.
Technical specifications
| APP | SightSys |
|---|---|
| Network Support | 2.4GHz WiFi / BLE; no RJ45 port |
| Resolution | 4MP (1920 x 1080 x 2) |
| Lens Focal Length | 4mm × 2 (dual lenses) |
| PTZ Angle | Supports App-controlled 355° pan / 90° tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| Max. Working Power | < 10W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
| Luminous Flux | 650-700 lm |
| Power Supply | E27 lamp holder |
Packaging and carton data
| Color box | 9.5 × 9.5 × 18 cm |
|---|---|
| Master carton | 49.5 × 40 × 56 cm |
| Quantity per carton | 60 pcs |
| Carton gross weight | 19.5 kg |
| Standard accessories | Bulb camera, screw kit, user manual |
Discuss your sample or wholesale project
Include SHM-MD22E9EL, destination market, quantity, installation power requirements and preferred recording method in your enquiry. For an OEM/ODM discussion, describe the branding or packaging you need so the applicable scope can be confirmed for this model.
