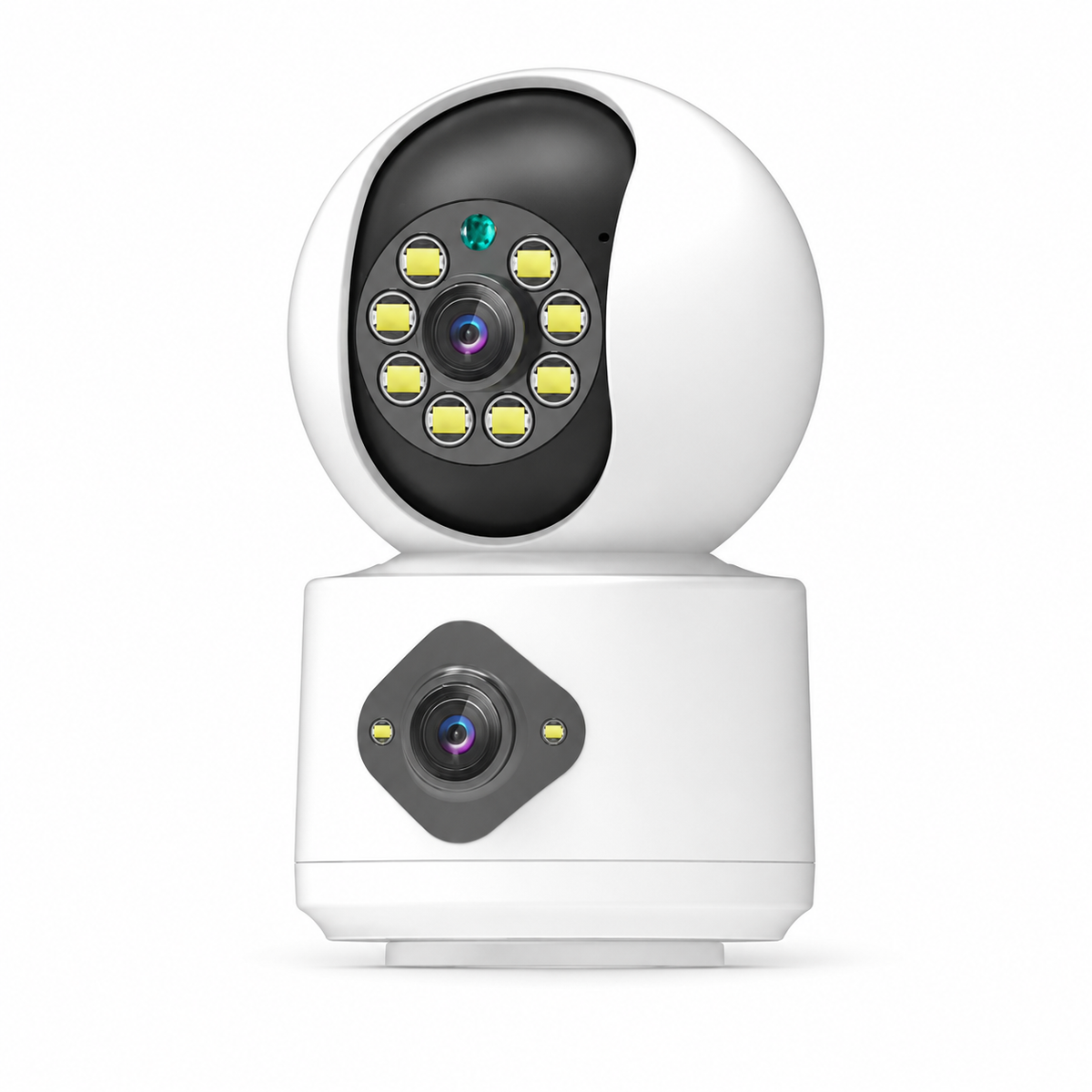

SHM-M32Y6204-EX Indoor Security Camera
SHM-M32Y6204-EX is a dual-lens indoor Wi-Fi camera with a 3MP + 3MP imaging configuration and 4mm + 4mm lenses. The main lens supports app-controlled movement, while the secondary lens is adjusted manually. Human detection, two-way audio and local or cloud recording support indoor monitoring projects.
Product details
Key capabilities
- Main lens: app-controlled 355° pan and 90° tilt. Secondary lens: manual adjustment.
- Human detection and tracking with smart alarm push notifications.
- Two-way audio for real-time communication and device sharing for multiple online viewers.
- Smart dual-light night vision: infrared and full color, up to 15 m.
Understand the two-lens arrangement
The resolution is specified as 6MP (3MP + 3MP), with two 4mm lenses. The stated pan and tilt control applies to the main lens; the secondary lens is adjusted manually. Confirm the intended framing for both lenses during sample evaluation.
Technical specifications
| Full model | SHM-M32Y6204-EX |
|---|---|
| APP | SightSys/Carecam Pro |
| Network Support | 2.4GHz WiFi / BLE |
| Resolution | 6MP (3MP + 3MP) |
| Lens Focal Length | 4mm+4mm |
| PTZ Angle | Main lens supports App-controlled 355° pan / 90° tilt; secondary lens supports manual adjustment |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| Power Input | DC 5V/2A |
| Max. Working Power | < 10W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
Indoor application and installation checks
Consider this model for indoor shop, reception or office viewing projects. These are selection examples: evaluate both lens positions, network coverage and night-viewing conditions for the intended installation.
- Plan for DC 5V/2A power and a 2.4GHz Wi-Fi connection at the intended indoor installation location.
- Confirm the SightSys / Carecam Pro app configuration for your order before choosing a deployment.
- Observe the -20°C to 60°C operating range and 10% to 90% RH, non-condensing humidity limit.
- TF card support is up to 128GB. Confirm card inclusion and the cloud service availability and terms for your target market.
Packaging and sample planning
| Color Box | 8.9*8.9*16.3 cm |
|---|---|
| Carton | 55.7*34.1*47.5 cm |
| Qty/Carton | 60 pcs |
| Carton G.W. | 18.65 kg |
| Accessories | Camera, power adapter if applicable, screw kit, user manual. |
Confirm the power adapter and packaging configuration for your order. Carton quantity is a packing detail, not a minimum order quantity.
Discuss your indoor camera project
Share your target market, intended installation, sample or project quantity, app, branding and packaging requirements. Request the configuration and commercial terms for the complete model.
