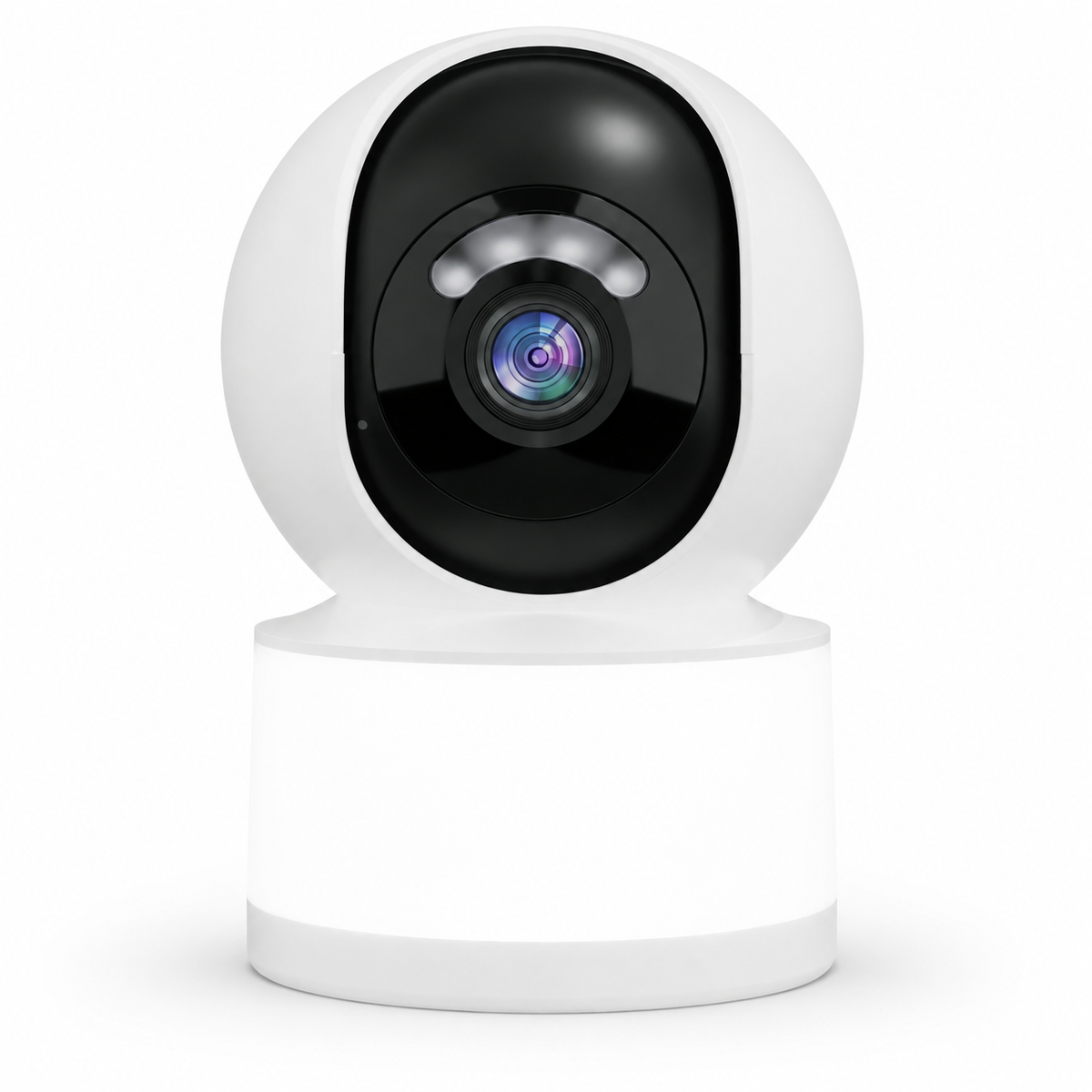

SHM-M32Y611-L Indoor Security Camera
SHM-M32Y611-L is a 4MP indoor Wi-Fi PTZ camera with a 4mm lens, app-controlled viewing angles and integrated lighting. It combines human detection and tracking, two-way audio and local or cloud recording options for indoor monitoring projects.
Product details
Key features
- 4MP imaging with a 4mm lens.
- App-controlled 355° pan and 90° tilt, with manually adjustable lens support.
- Human detection and tracking with smart alarm push notifications.
- Two-way audio and device sharing for multiple online viewers.
- Smart dual-light night vision: infrared and full color, up to 15 m.
- 450–500 lm lighting output.
Technical specifications
| Full model | SHM-M32Y611-L |
|---|---|
| APP | SightSys/Carecam Pro |
| Network Support | 2.4GHz WiFi / BLE |
| Resolution | 4MP |
| Lens Focal Length | 4mm |
| PTZ Angle | Supports App-controlled 355° pan / 90° tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| Power Input | DC 5V/2A |
| Max. Working Power | < 10W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
| Luminous Flux | 450-500 lm |
Installation and configuration checks
- Plan for DC 5V/2A power and a 2.4GHz Wi-Fi network at the installation location.
- Use this model for indoor projects and follow the operating temperature and non-condensing humidity limits in the technical specifications.
- Confirm the app configuration for your order: SightSys / Carecam Pro are listed for this model.
- Confirm whether a TF card is included and the applicable cloud service terms when requesting a quotation.
- Quote the complete model number SHM-M32Y611-L when requesting samples, specifications, or a quotation. Include the L suffix in your inquiry.
Packaging and accessories
| Color box dimensions | 8.9 × 8.9 × 15.3 cm |
|---|---|
| Carton dimensions | 56.2 × 32 × 46.5 cm |
| Quantity per carton | 60 units |
| Carton gross weight | 17.1 kg |
| Accessories | Camera, power adapter if applicable, screw kit, user manual. |
Confirm whether a power adapter is included with your order. Contact us for minimum order requirements.
