Indoor Security Camera / RFQ catalog

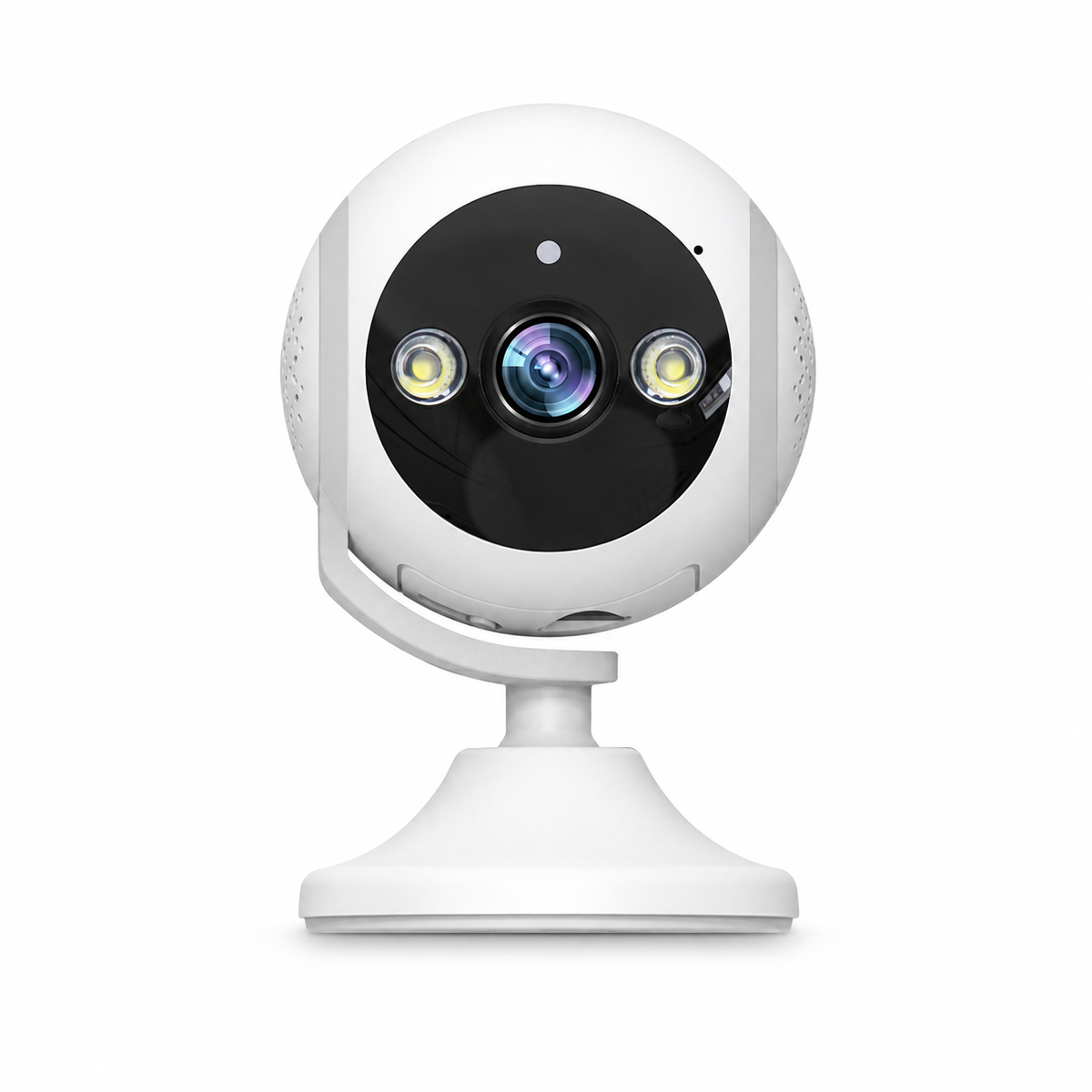

SHM-M32I310-EL Indoor Security Camera
SHM-M32I310-EL is a 4MP indoor Wi-Fi PTZ camera listed with the Carecam Pro app. A 4mm lens, app-controlled pan and tilt, human detection and two-way audio support indoor monitoring. Recording options include a TF card up to 128GB and cloud storage.
Product details
Key features
- 4MP imaging with a 4mm lens.
- App-controlled 355° pan and 90° tilt, with manually adjustable lens support.
- Human detection and tracking with smart alarm push notifications.
- Two-way audio and device sharing for multiple online viewers.
- Smart dual-light night vision: infrared and full color, up to 15 m.
Technical specifications
| Full model | SHM-M32I310-EL |
|---|---|
| APP | Carecam Pro |
| Network Support | 2.4GHz WiFi / BLE |
| Resolution | 4MP |
| Lens Focal Length | 4mm |
| PTZ Angle | Supports App-controlled 355° pan / 90° tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| Power Input | DC 5V/2A |
| Max. Working Power | < 10W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
Installation and configuration checks
- Plan for DC 5V/2A power and a 2.4GHz Wi-Fi network at the installation location.
- Use this model for indoor projects and check the operating temperature and non-condensing humidity limits below.
- Carecam Pro is the app listed for this configuration. Confirm the ordered app configuration before installation.
- Confirm whether a TF card is included and the applicable cloud service terms when requesting a quotation.
- Use the complete model SHM-M32I310-EL in your sample or specification request to keep the required configuration clear.
Packaging and carton data
| Color box | 15 × 12.9 × 8.3 cm |
|---|---|
| Master carton | 53.1 × 46.5 × 43 cm |
| Quantity per carton | 60 pcs |
| Carton gross weight | 23 kg |
| Accessories | Camera, power adapter if applicable, screw kit, user manual |
Discuss your indoor camera project
Share the target market, installation conditions, sample or project quantity, and branding or packaging requirements. Quotation and commercial terms are confirmed for the requested configuration.
