Outdoor Security Camera / RFQ catalog

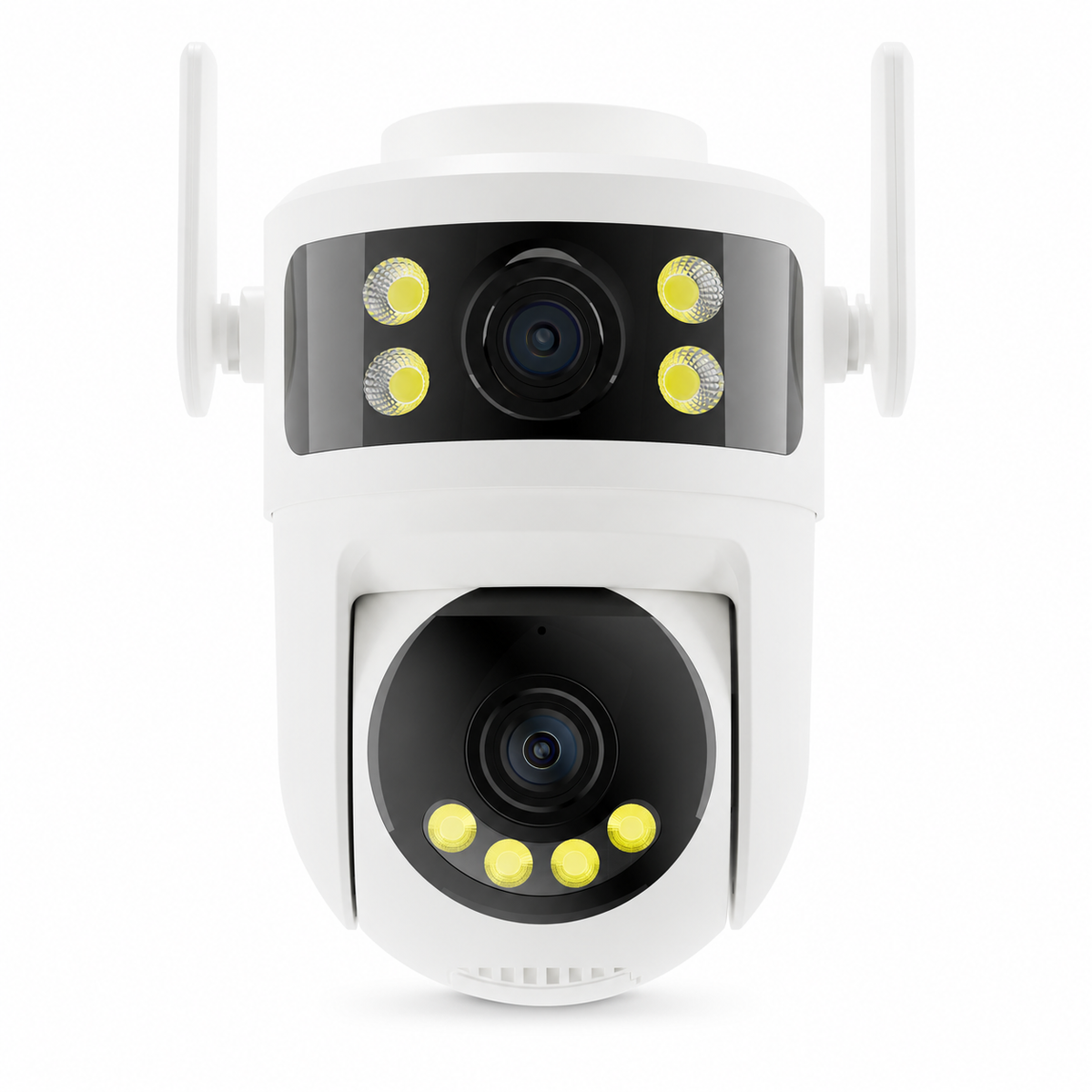

SHM-M32082C13-EX-CR White(5V)(0) Outdoor Security Camera
SHM-M32082C13-EX-CR White(5V)(0) is the white 5V outdoor security camera configuration with a 6MP rating specified as 3MP + 3MP, app-controlled pan and tilt, and human detection and tracking. This complete model suffix identifies a separate sales version: specify it in full when requesting a sample, power accessories or a wholesale quotation.
Product details
Key features
- 6MP configuration specified as 3MP + 3MP, with 4mm optics.
- App-controlled 355° pan and 90° tilt, together with a manually adjustable lens.
- Human detection and tracking, smart alarm push notifications, and two-way audio.
- Infrared and full-color smart dual-light night vision, specified up to 15 m.
- IP65-rated housing, TF card storage up to 128GB, cloud storage support and device sharing.
Specify the white 5V version
- The device input is DC 5V / 1.5A. The separately specified adapter output is DC 5V / 2A; the device-input and adapter-output values describe different parts of the power arrangement.
- This version has 2.4GHz WiFi and BLE but no RJ45 port. Do not order it for a wired Ethernet connection.
- Keep White(5V)(0) in the model reference. Do not substitute the power configuration of the C13 version without this suffix.
- The catalogue lists SightSys / Carecam Pro. Confirm the app supplied for the ordered configuration, adapter inclusion and plug type, TF card inclusion and cloud-service terms when requesting your quotation.
Technical specifications
| APP | SightSys/Carecam Pro |
|---|---|
| Network Support | 2.4GHz WiFi / BLE; no RJ45 port |
| Resolution | 6MP (3MP + 3MP) |
| Lens Focal Length | 4mm |
| PTZ Angle | Supports App-controlled 355° pan / 90° tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| IP Rating | IP65 |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
| Device Power Input | DC 5V / 1.5A |
| Adapter Output | DC 5V / 2A |
Request a sample or project quotation
Send the full model SHM-M32082C13-EX-CR White(5V)(0), quantity, destination market and intended installation environment. Include your power-accessory, recording and app requirements. For OEM/ODM enquiries, describe the branding or packaging scope you want to discuss for this exact version.
Packaging and included items
Color box: 14 × 10 × 12 cm. Carton: 58 × 52 × 50 cm. Quantity per carton: 80 pcs. Carton gross weight: 35.7 kg.
Listed accessories: camera, power adapter if applicable, screw kit, and user manual.
