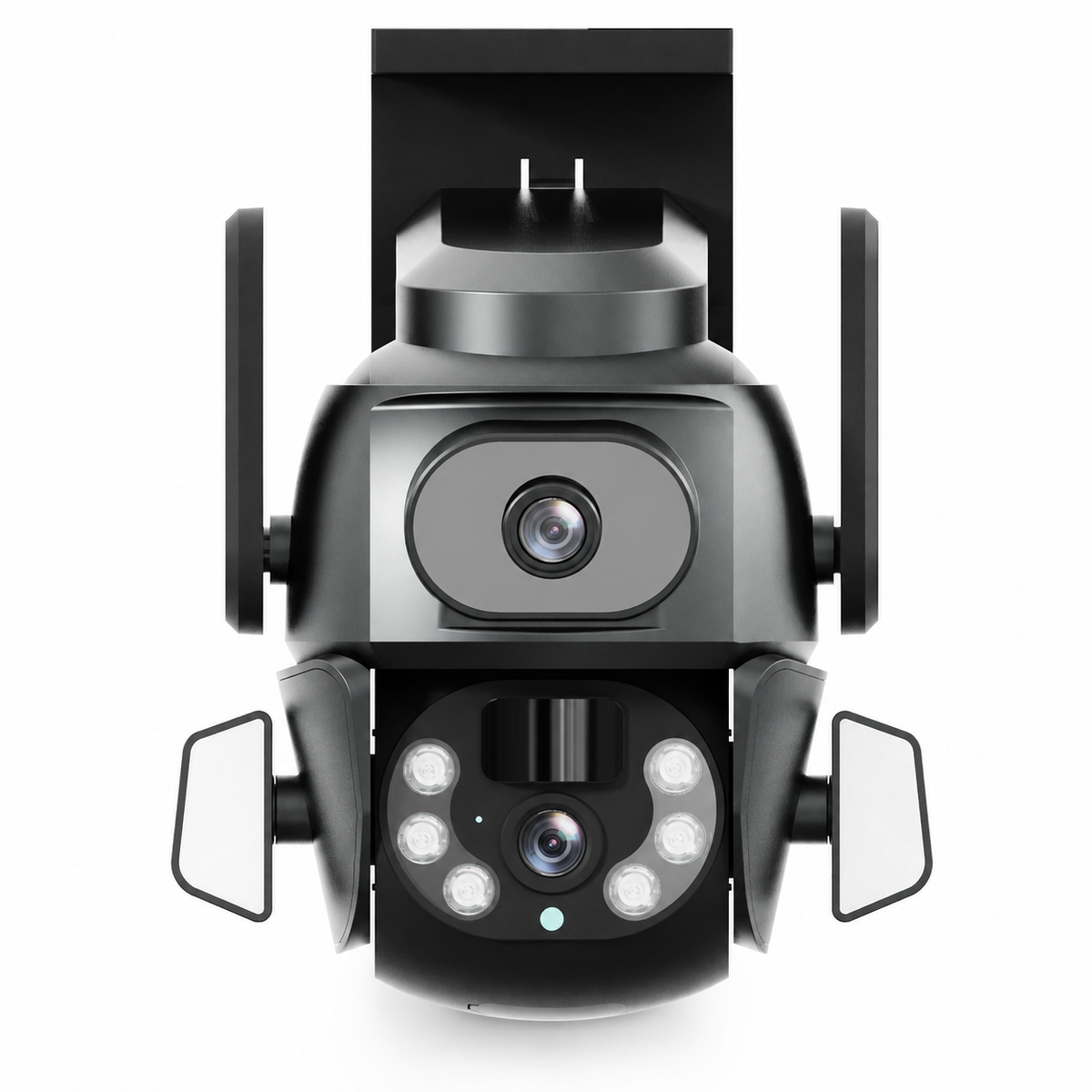

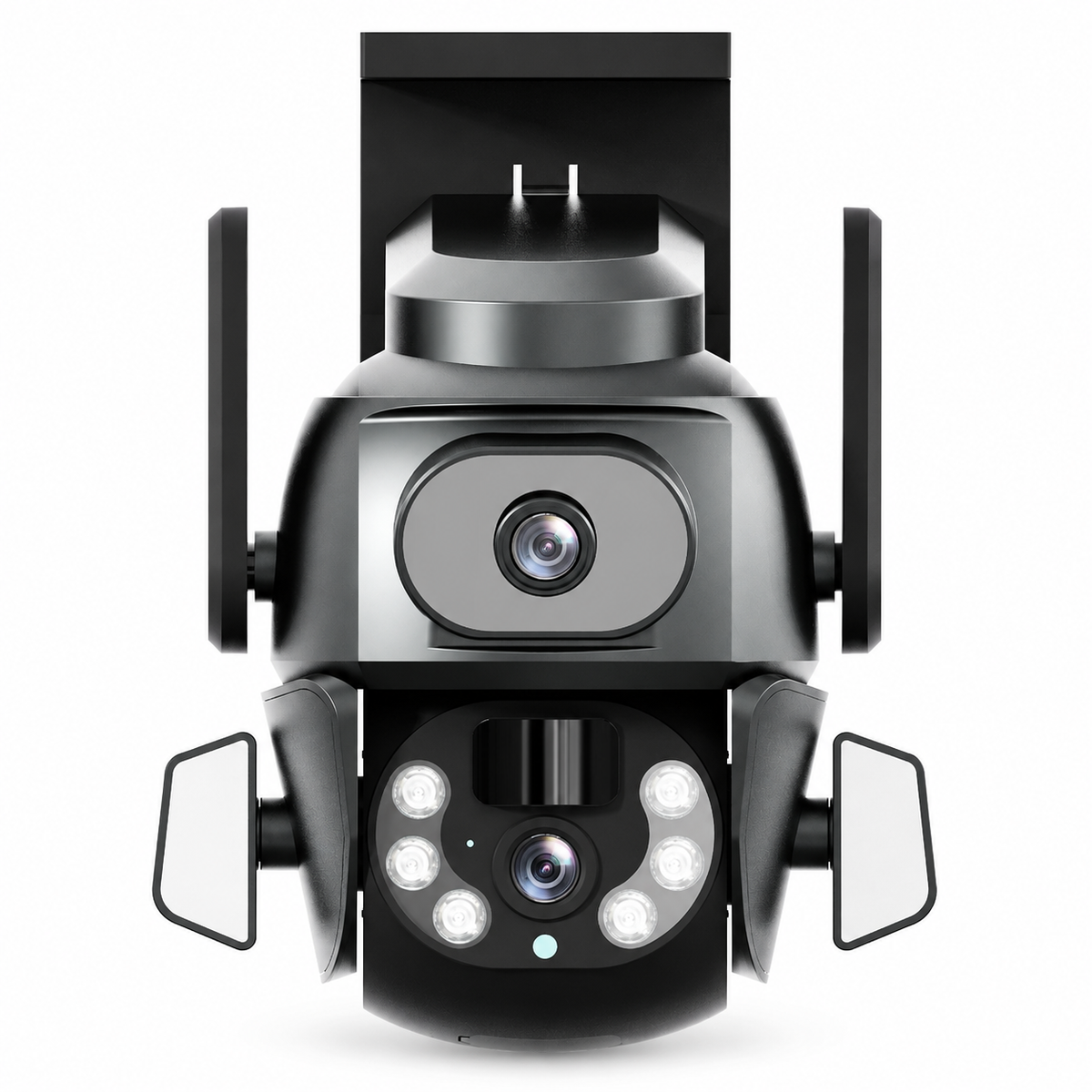

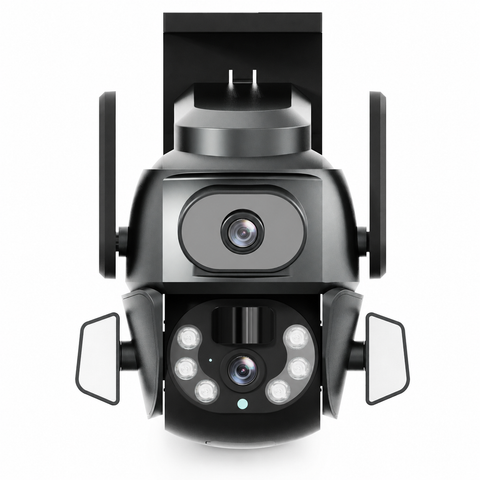

Q821 Outdoor Dual-Lens Linkage Security Camera
SHM-M32Q821-EX combines 6MP resolution (3MP + 3MP) and 4mm + 4mm lenses with app-controlled positioning for outdoor monitoring. The main lens supports 355° pan and 90° tilt, allowing the view to be directed remotely.
Product details
For project buyers considering an entrance, courtyard or small-premises installation, evaluate the mounting position, power supply and network connection together. Identify the full SHM-M32Q821-EX model in your sample or quotation request so the proposed configuration can be matched to the site.
Monitoring and communication functions
- Remote view adjustment: app-controlled pan and tilt support changes to the viewing direction within the stated movement range.
- Activity notifications: human detection, tracking and smart alarm push notifications support remote monitoring.
- Two-way audio: communicate in real time through the camera.
- Shared access: device sharing supports multiple online viewers.
- Recording options: TF card storage up to 128GB and cloud storage are supported. Include the required storage configuration in your inquiry.
Connectivity, power and installation
Network support includes 2.4GHz WiFi, RJ45 LAN and BLE. The camera requires DC 12V/1.5A input and has a maximum working power below 15W. Plan the power supply and network connection before installation.
Smart dual-light night vision supports infrared and full-color modes with a stated range of up to 15 m. Evaluate the actual scene and lighting during sample testing; the stated range is not a guaranteed identification distance.
The camera has an IP65 rating and a listed working humidity of 10% to 90% RH, non-condensing. Confirm the operating-temperature range for the selected sales version before installation, especially at sites exposed to heat or freezing conditions. Confirm the app supplied with that version as part of the sample configuration.
For a dual-view installation, confirm the secondary lens adjustment and the required view layout during sample evaluation. Do not assume both lenses have the same motorized movement range.
Technical specifications
| Network Support | 2.4GHz WiFi / RJ45 LAN / BLE |
|---|---|
| Resolution | 6MP (3MP + 3MP) |
| Lens Focal Length | 4mm+4mm |
| PTZ Angle | Main lens: app-controlled 355° pan / 90° tilt |
| Night Vision | Smart dual-light night vision (IR and full color, up to 15 m) |
| Recording Storage | TF card (up to 128GB) / cloud storage |
| IP Rating | IP65 |
| Power Input | DC 12V/1.5A |
| Max. Working Power | < 15W |
| Working Humidity | 10% ~ 90% RH (non-condensing) |
Packing and accessories
Color box: 16.7 × 16.7 × 18.3 cm. Carton: 68.8 × 52.1 × 56.9 cm. Quantity per carton: 36 pcs. Carton gross weight: 30.5 kg.
Listed accessories are a camera, power adapter if applicable, screw kit and user manual. Confirm whether the adapter is included in the selected package before ordering.
Project selection questions
What should I send for a quotation?
Include SHM-M32Q821-EX, planned quantity, destination market, network connection, installation environment and storage requirements. Add any branding or packaging requirements for discussion.
What should be checked on the sample?
Confirm the full model, supplied app, environmental limits, image views and power package. Test the proposed camera position and night scene before committing to the deployment configuration.
How are samples and commercial terms arranged?
Request sample availability, a project quotation and delivery timing for your selected configuration and quantity.
Request a model-specific quotation
Discuss your procurement and installation requirements for SHM-M32Q821-EX.
