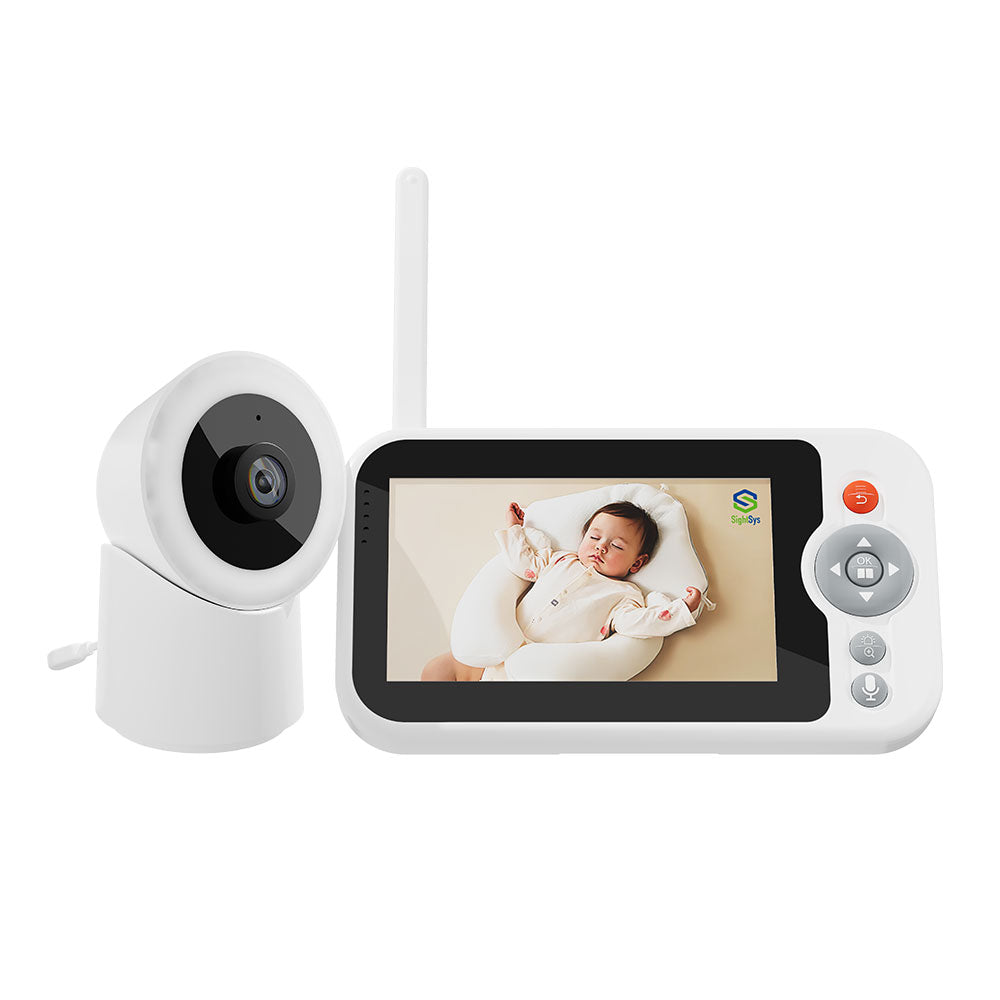

BBM-V1 2MP Indoor Baby Monitor with 5-Inch Display
BBM-V1 is a 2MP indoor baby monitor set with a pan-tilt camera and a dedicated 5-inch display. The camera connects directly to the display, without a phone App.
Product details
Features
- Point-to-point wireless connection between the camera and display
- 2MP camera with a dedicated 5-inch display
- 350° horizontal and 50° vertical pan-tilt movement
- Sound and cry detection
- Temperature and humidity readings, lullabies and feeding reminders
- Two-way audio
Specifications
| Model | BBM-V1 |
|---|---|
| Camera Resolution | 2MP (1920 × 1080) |
| Display Size | 5 inches |
| Camera-to-Display Connection | Point-to-point wireless direct connection |
| Phone App | Not supported |
| Phone Push Notifications | Not supported |
| Cloud Storage | Not supported |
| Camera Device Input | DC 5V / 1A, USB Type-C |
| Display Device Input | DC 5V / 1A, USB Type-C |
| Adapter Outputs | Two DC 5V / 1A adapters for the camera and display |
| Display Battery | 3400mAh |
Lens and package details
The camera uses a 4.0 mm lens. View the camera on the dedicated display and use two-way audio to speak through the camera.
Included equipment
- BBM-Y61Y02-A pan-tilt camera
- 5-inch display
- Two DC 5V / 1A power adapters for the camera and display
Packaging
| Color box | 205 × 180 × 78 mm |
|---|---|
| Master carton | 56 × 44 × 41 cm |
| Quantity per carton | 30 pcs |
| Gross weight per unit | 657 g |
Before specifying your BBM-V1 set
- Plan for viewing through the dedicated display. This set does not support a phone App, phone push notifications or cloud storage.
- Local TF card storage supports cards up to 128GB, with loop recording and playback. Confirm the card-slot location, TF card inclusion, recording and playback controls, and supported local screen alerts for your set.
- The 3400mAh battery belongs to the display. Confirm operating time under your intended use rather than treating the capacity as a specified runtime.
- Include your quantity, destination market, adapter plug requirements and any branding or packaging requests in the enquiry.
Contact SightSys for BBM-V1 samples, specifications and wholesale or OEM project enquiries.
